KLINGER Ballostar® KHE Ball Valves

2-piece body, flanged ball valve optimised for the process industry

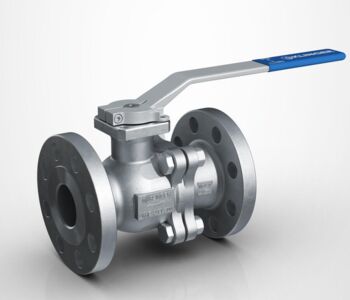

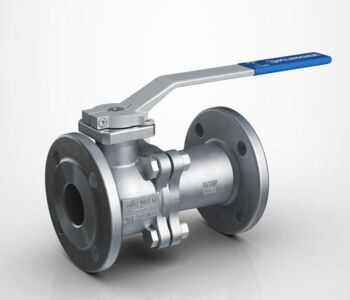

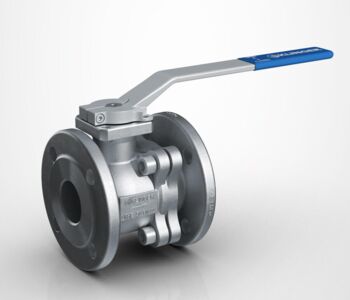

Due to the 2-piece body construction design the risk of an external leakage is reduced, because there is just one sealing area between body and flanged end piece. A whole ball valve range produced according to ANSI standards (KHE-CL) as well as a complete range of flange valves in short pattern design were considered during the product development. Also the Ballostar KHE ball valve offers modular selectable system components (operating stem and sealing elements). A construction kit that has already successfully proved itself at the Ballostar KHA valve. Thus the split body KHE valves is prepared for a wide range of operating conditions.

Product Advantages Ball Valves

  • Maintenance-free
  • Supports pressurization on both sides
  • Ball with cylindrical full bore
  • Sealing in accordance with EN 12266-1 – leakage rate A

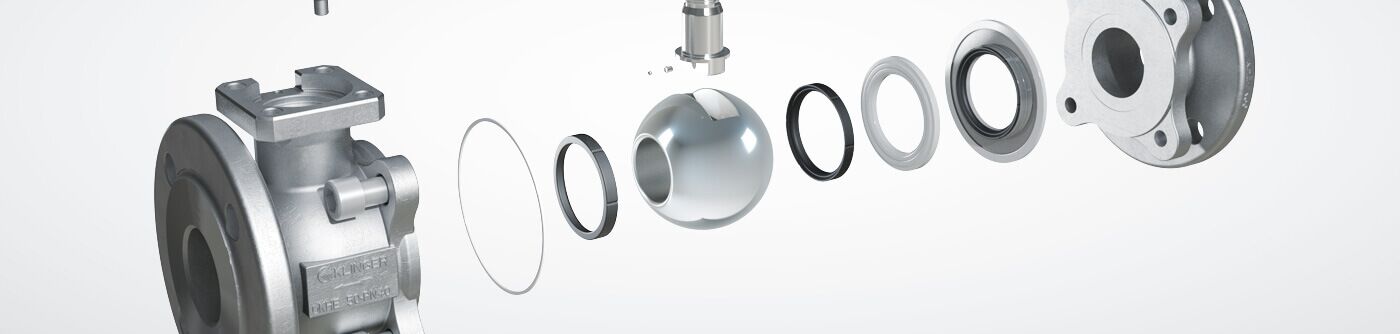

  • Modular selection of system components
  • Fire Safe
  • Antistatic design in accordance with ISO 7121 / EN 1983
  • Subsequent automation possible at any time (top flange in accordance with EN ISO 5211)
  • Optimal spare parts availability (as a result of common parts with Ballostar® KHA)

Special Types KHE Ball Valves

  • Metal seat for abrasive media
  • Operating stem sealed by O-rings
  • Operating stem extension
  • Oxygen version (oil- and grease-free)
  • Gas version

Download Brochures

Please find attached the KLINGER Fluid Control image brochure and the product brochure.
