KLINGER Ballostar® KHI

A unique sealing system guarantees decades of reliability.

KLINGER Ballostar® KHI ball valves will keep up with stricter requirements and are assured to already meet future standards with regard to tensile, compressive and bending stress. Its unique sealing system is another feature of Ballostar® KHI. The test and drain valve welded to the ball valve housing allows the pressure to be relieved intermediately while the ball is closed.

The key benefit of this feature is that Ballostar® KHI can be leak-tested at any time without having to open the pipeline. These ball valves are fit for many different applications such as underground district heating trenches, buried pipelines, co-generation power stations, pump stations, steelworks, hydroelectric power stations and tunnel boring machines.

Ballostar® KHI - flanged ends

Ballostar® KHI - welded ends

Product advantages

  • Maintenance-free
  • Bi-directional sealing
  • Trunnion mounted ball with cylindrical bore
  • Supports pressurization on both sides
  • Sealing elements protected against water hammers
  • High degree of resilience against pipework forces
  • Double Block & Bleed with optional drain valve
  • Subsequent automation possible (top flange in acc. with EN ISO 5211)
  • Leakage rate A (EN 12266-1/ISO 5208) soft seated
  • Leakage rate Class IV-S1 (EN 60534-4) metal seated (KHI-F and KHI-S)
  • Metal seat for abrasive media
  • Anti blow out stem
  • Anti static tested
  • Oxygen version
  • Fire safe version
  • Gas version (GKHI)
  • Oil, grease and silicone-free
  • Certified acc. to EHP 003 (EN 488-1) for KHSVI VVS

Produktdetails

Flanged versions

  Ballostar® KHI-F -
small diameter		 Ballostar® KHI -
large diameter
PN 10/16/25/40,
ASME CL 150/300		 10/16/25/40
DN 150-400, 6"-16" 500-1000
Material Stainless steel, duplex, carbon steel carbon steel
Temperature -45°C to +250°C -45°C to +200°C
Design Flanged ends Flanged ends
Type Two-piece ball valve with full bore

Two-piece ball valve with full bore

Welded versions

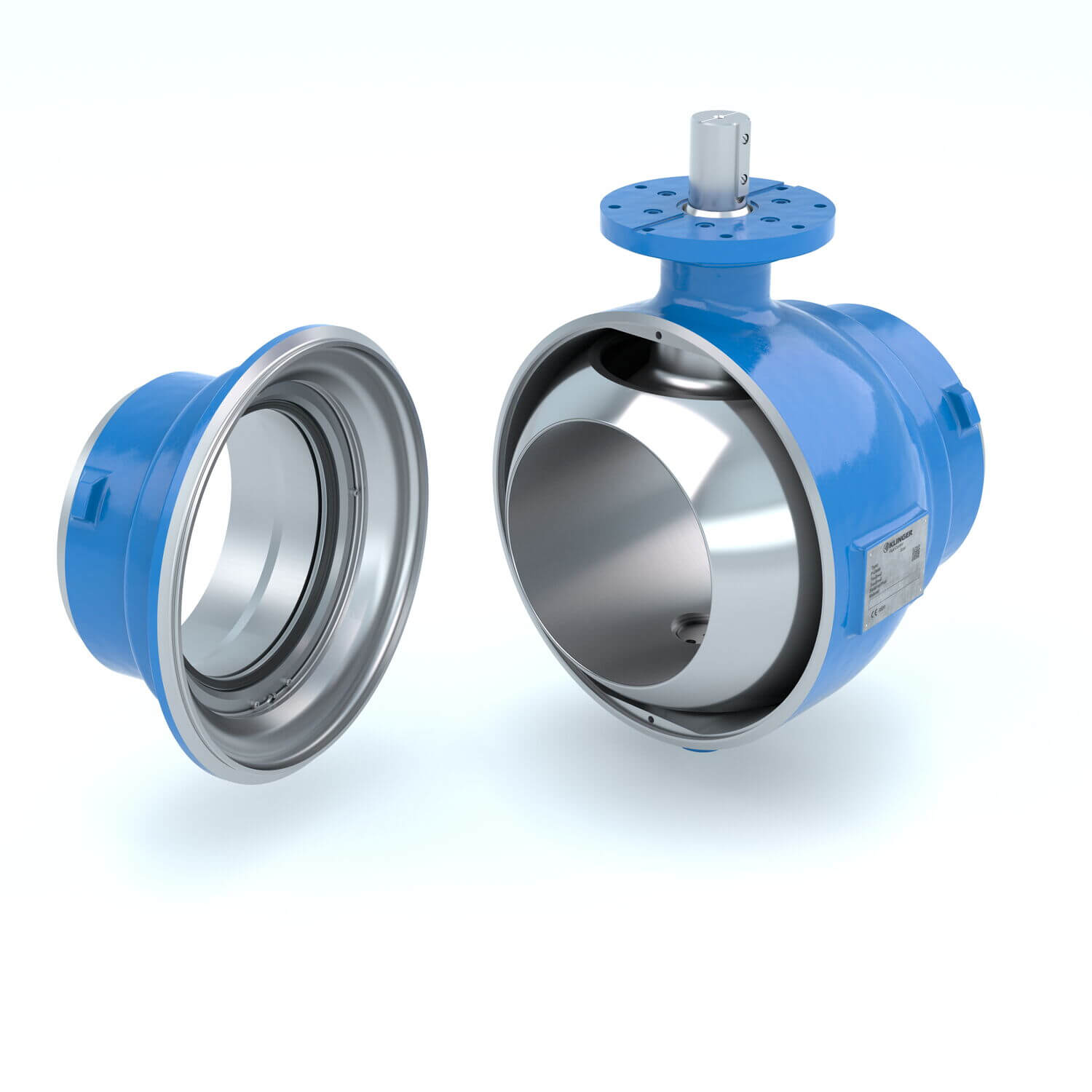

  KHI-S KHSVI KHSVI VVS
PN 10/16/25/40 10/16/25/40 10/16/25/40
DN 150-400 500-1000 150-800
Material Carbon steel Carbon steel Carbon steel
Temperature -45°C to +250°C -45°C to +200°C -45°C to +250°C
Design Welding ends Welding ends, cones Fully-welded, cones
Type Two-piece ball valve with full bore Two-piece ball valve with full bore Single-piece ball valve with full bore
